Available In:
- Diesel
- Electric
600 HP
Max Horsepower
Powerful Productivity & Efficiency For The Big Jobs

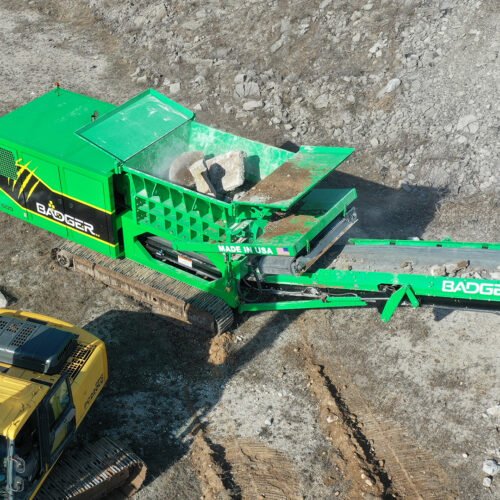

The 600-horsepower Badger shredder is your best choice for the big jobs, including onsite concrete, demolition materials, bio-waste, and general material reduction. Our machines meet the ever-demanding needs of our customers. They are available with magnetic separators, dust suppression systems, lights, wifi diagnostics, and blade configurations specific to your job site needs. With models that are mobile, semi-stationary, stationary, diesel or electric, there is a Badger for every need.
Standard Technical Specifications
Standard Diesel Engine
| Engine | Volvo D16 Stage IV / Tier 4F | 600HP |
Chamber Specs
| Standard Shredding Chamber dimensions | 56″ x 96″ |
| No. of Shafts | 2 each |
| Standard Number of Blades per Shaft | 12 per shaft |
| Cutting elements per blade | 2 each |
| Shaft/Blade RPM | 12 – 17 RPM |
Machine Specs
| Machine Length in Operating mode | 48′ |
| Width of Belt | 48″ |
| Dumping Height | 10′ |
| Overall Unit Height | 11’ 3” |
| Overall Unit Width | 10’ 4” |
One Machine
Many Missions
Engineered rugged and tough from the inside out, Badger shredders reduce larger abrasive materials than any crusher in its class with more efficiency and throughput. Designed with exclusive reconfigurable shaft blades, the Badger provides versatility that no other crusher can match. Its high-torque, low-speed shaft design can be configured to shred whatever your job demands. And, it shreds with less noise pollution and dust than ever before.
LONGER LASTING, STRONGER MATERIALS
Superior Quality
Fabricated from high-strength steel structural tubing, plate, and channel sections, the Badger features a high-quality and robust machine frame. High-strength steel blades and heavy-duty conveyors lead to a machine that takes abuse and runs longer with less downtime.
Customization Options
Equiped To Fit Your Needs
Replaceable BLADE CONFIGURATIONs
Badger pioneered the ability for operators to replace and/or reconfigure their blade shafts for any shredding need. That’s versatility others can’t touch.
DUST SUPRESSION SYSTEM
The Badger’s unique shredding action produces less airborne particles than competitive designs. Reducing worker exposure to unhealthy and sometimes toxic airborne particles is an important preventative measure.
Iindustrial-Sized Hopper
The Badger’s oversized hopper increases capacity and throughput, creating greater job site efficiency and reducing the need to double handle materials.
Magnetic Seperation System
Available with a permanent self-cleaning high-strength magnet, the Badger’s separation system efficiently removes steel (or ferrous) material from the debris and is adjustable for your job site needs.
See why customers ask for us by name
Field
Tested
Badgers are tested and proven in real-world conditions and harsh extremes.
Durability & Reliability
Engineered to provide unmatched shredding performance your jobsite can rely on.
Improved Engineering
Manufactured in the USA to deliver superior production advantages & greater ROI.
Smart
Technology
Changing the way the industry applies heavy equipment technology - from efficiency to safety.
Application Versatility »
The Badger twin shaft, slow speed, high torque shredding machine represents a new evolution in recycling. By incorporating innovative new-to-market features and benefits, Badger has the versatility to shred more types and sizes of materials than anyone else.
